Cabinet Type Machine

Being a client-centric organization, we are engaged in offering a wide array of Cabinet Dyeing Machine & Bleaching machine. Our skilled professionals manufacture these machines, from high quality raw material, using the latest technology. In ahead of their final dispatch, our offered machines are thoroughly checked by our quality inspectors against varied quality parameters. Available with us, in a number of specifications, these machines are highly demanded in the market. we can supply from 20kg to 200kg or more capacity models with carrier arrangemant and temp controling etc.

Features:

• Sturdy construction
• Minimum maintenance
• User-friendly

• Carrier as well as stik type machine is provided
• auto control panel with time indicator & controller can be provided
• Suitable for a wide variety of yarns including wool, acrylic, viscose, ramie, cotton and their blends
• Complete process of scouring, steaming, bleaching, dyeing and softening can be done in a single operation
• Direct and indirect heating systems are available to different requirements
• Flow blades render uniform and homogeneous distribution of the liquor throughout the bath 4 step varied speed and auto reversed control is provided to facilitate the dyestuffs and auxiliaries
• Sampling device provides possible inspection of color at any stage of the dyeing cycle Whilst maximum safety being ensured

Universal Continious Drying Machine For Cotton, Acrylic & Woollen Hanks

Continous Hank Yarn Pole Hryer Machine Sutable For 54 and 90 Circumference Hank Yarn
The Machine is consuming only 7 HP power and giving production of about 3Tons/Day. A dual movement of yarn on its axis and leaner one gives uniform drying to all the hanks in process. Bigger capacity models are also available

• Suitable for Drying Cotton, Woollen and acrylic yarn in hank from all textile industrial yarn.
• Various models are available depanding upon production requirment.
• A unique arrangement for circular as well as linear movement of hanks during drying is provided for even drying of hanks from all directions.
• Triple pre-selected speed arrangement provided.
• Attached conditioning zone for controlling moisture in hank after drying.
• Easy maintenance.
• Requiring only 7 HP AC electrical load in all.
• Maximium production per hour achived at low steam and power consumption.
• More than 150 dryers of various types are working in all the Flagship companies in India & abroad.

Wash Bowl of Loose Wool Scouring Machine

Continuous loose wool scouring plant with continuous fibre dryer
designed and manufactured for the first time in india , incorporating "twin side tanks", involving improved processing principles.
automatic controlled two stage feeder provides efficient fibre opening arrangment.
auto self -cleaning device in two bowls ensure improved wool washing and also to save water. A back flow water circulating system is provided.
improved combing performance as compared with conventional plants scoured wool.
100% washing is achived in single pass.
individual temperature control system provided for each bowl.
cotinuous operational convenience made available due to incorporation of twin side tanks and followed by conveyor dryer and auto cleaning in bowl.
longer mean fiber length is obtained which is good for top dyeing,
no felting problem due to smooth moving of fibre bed during process.
high efficent and continuous conveyour dryer has multiple built -in advantages like easy maintenance,free accessibility and self -cleaning,all involving simple mechanical designs. A unique serpantile hot air flow from top & bottom dries wool completely and evenly recirculalting hot air to save heat energy and power in attached dryer. (for dryer see fiber dryer)

Fiber Auto Feeder

Fiber Auto Feeder: For Woollen Yarn & Other Fibers

• Study construction with Horizontal and Vertical spiked Lattice for easy movement of fiber at variable speed
• Single or Twin feeder can be supplied
• A Multi -speed doffing system oscillates before vertical lattice to open up fibre and also controls feeling
• High speed striper roller drum with adjustment of speed is provided to achieve uniform fibre feeding
• A permanent magnetic system can be provided to sense & prevent the presence of iron particles while feeding the fiber
• All lattices are mounted on specially designed chain to give more life to lattice
• Individual drive for lattice and stripper roller give jerk free & smooth movement to fibre flow
• Lattice tightening arrangements are given
• Photo cell system can be provided, to regulate the flow of feeding, in case of Twin type feeders

Crabbing Machine

Focused on technological up-gradation, dynamism and innovation, we are moving ahead by maintaining timeliness in delivering a wide gamut of Crabbing Machine. These machines are designed by our adroit professionals using high grade material and modish technology, who have in-depth knowledge about the industrial standards. To meet varied demands of our respectable clients, offered range is available in a number of technical specifications. This is used for steaming & Crabbing process for woollen fabric.

Features:

• Rust proof body
• Less maintenance
• Hassle free performance

• Complete operation in open width
• Boiling & Crabbing operation suitable for pure Wool Polyester Wool & Other blends
• Auto push button and pneumatic squeezing and winding system provided
• Over and above this model, Mini Crab and Continuous Crabbing Machines also are available

Woolen Yarn Scouring Plant

The yarn scouring plant is equipped with 4 bowl or 5 bowl system with Penumatic squger & a tape type movement of woollen yarn is hank form necessary pumping & spray arrangemant is supplied with a centralize Control panel

Features:

• Require less space
• Optimum performance
• Minimal maintenance

• A Continuous endless nylon lattice gives maximum travel in the bowl to hank yarn
• Common or individual drive with pneumatic squeezer gives better cleaning
• Spray pump cleans & Scours yarn continuously during its travel
• Various sizes of length of Bowl, fabricated out of stainless steel is provided
• A centralized control panel & continuous pole type hank dryer can be provided to dry the hank yarn after washing

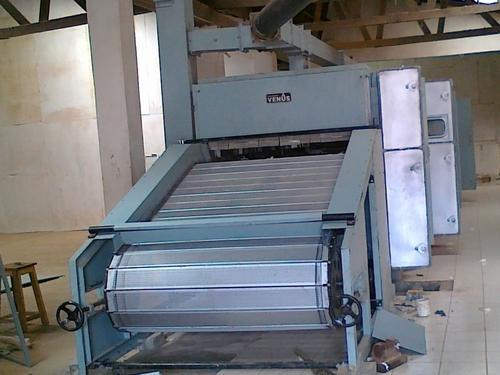

Continuous Conveyor Type Fiber Dryer

• The Complete Dryer is insulated from all the sides by insulating panels.
• Each chamber is having top & bottom Finned type Heater with filters to evenly heat the air and evenly dry the material, which is moving on the conveyor from all around.
• The material on the conveyor is moving in an opposition direction then the serpentine airflow witch dries the material on conveyor from all sides evenly.
• Each chamber is having big dual suction blower, running on ball bearing housed in separate housing for continuous powerful airflow with individual Motor by belt drive.
• There is Overhead duct from 1st chamber to last chamber with Dumper arrangement to re-circulate the hot air or to blow out if saturated with manual dumper setting saved heat energy.
• The Complete Conveyor fabricated out of rust proof heat conductive perforated metallic Sheets.
• The Chains manufactured out of heat-treated material with all the roller and pin grounded on centre less grinder for additional friction free life and next to nil wear tare. Guaranteed for trouble free working with normal Lubrication.
• The Complete Conveyor can be equipped with either a step pulley A.C Variable drive or with A.C. inverter or D.C. Variable Speed drive for setting different type of stay time according to material to be dried as per Client's Choices at an extra cost.
• Machine is capable to dry small width CARPETS and BATH MATS on the Conveyor.
